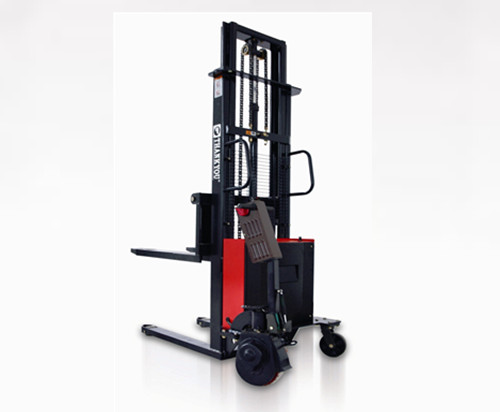

全电动搬运车的整车参数：
| 1 | 名称Description | 全电动堆垛车（无叉腿配重型） | ||
| 2 | 型号Model | TBB10-16 | TBB10-25 | TBB10-30 |
| 3 | 最大起升重量Kg Load capacity | 1000 | 1000 | 1000 |
| 4 | 载荷中心mmLoad center | 500 | 500 | 500 |
| 5 | 最大起升高度mm Max. lifting height | 1600 | 2500 | 3000 |
| 6 | 门架倾角degTilting angle (forward- backward) | 0 | 0 | 0 |
| 7 | 轮胎配置Wheel type | 聚胺脂实心胎Polyurethane solid tire | ||
| 8 | 刹车Brake | 电磁式Electromagnetic | ||
| 9 | 货叉尺寸（LxW）mmFork size | 1070*100 | 1070*100 | 1070*100 |
| 10 | 货叉调节范围mm Fork spread | 220-680 | 220-680 | 220-680 |
| 11 | 全长（含货叉,踏板收起）mm Overall length | 2750 | 2750 | 2750 |
| 12 | 全宽mmOverall width | 1010 | 1010 | 1010 |
| 13 | 门架闭合时高度mm Overall height mast closed | 2140 | 1856 | 2106 |
| 14 | 货叉起升时最大高度（含挡货架）mm Overall height fork raised(with backrest) | 2460 | 3360 | 3860 |
| 15 | 转弯半径（外侧, 踏板收起）mm Outside turning radius | 1510 | 1510 | 1510 |
| 16 | 最大行驶速度Km/hMax. walking speeds | 4.0~5.0 | 4.0~5.0 | 4.0~5.0 |
| 17 | 踏板长mm Pedal length | 500 | 500 | 500 |
| 18 | 爬坡能力%Grade abitity | 5~8 | 5~8 | 5~8 |
| 19 | 总重（含蓄电池）Kg Total weight( with battery) | ~1700 | ~1755 | ~1770 |
| 20 | 驱动轮mmDriving wheel | Φ215*75 | Φ215*75 | Φ215*75 |
| 21 | 前轮mm Front wheel | Φ267*114 | Φ267*114 | Φ267*114 |
| 22 | 平衡轮mmBalance wheel | Φ150*50 | Φ150*50 | Φ150*50 |
| 23 | 蓄电池电压/容量V/AhBattery | 24/210 | 24/210 | 24/210 |
| 24 | 充电机V/A Charger | 24/30 | 24/30 | 24/30 |
| 25 | 驱动马达KwDriving motor | 1.2 | 1.2 | 1.2 |
| 26 | 起升马达KwLifting motor | 2.0 | 2.0 | 2.0 |
| 27 | 行走调速方式Control system | MOSFET高频场效应晶体管控制器 | ||
