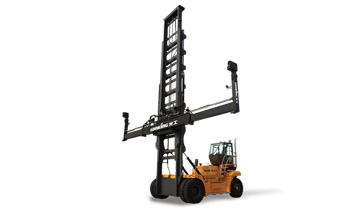

LG260EC8空箱堆高机参数

额定载荷(Kg)...............................................9000
载荷中心距(mm).............................................1220
最大起升高度(mm)..........................................21600
最大堆高层数.........................7层（9’6”）8层（8’6”）
门架倾角（前/后）.......................................2°/4°
最小转弯半径(mm)...........................................6000
前轮距(mm).................................................3270
后轮距(mm).................................................2330
最大爬坡能力（满载）%........................................28
整车自重(Kg)..............................................42500
轴距(mm)...................................................4500
前桥负荷(满载/空载)(Kg).............................42000/28500
后桥负荷(满载/空载)(Kg)..............................9500/14000
最大牵引力KN(2Km/h).........................................128
轮胎数量（前/后）...........................................4/2
轮胎规格型号......................................14.00x24-28PR
发动机..........................................VOLVO TAD 720VE
额定功率(KW(hp)/rpm)..............................174(237)/2300
最大扭矩(Nm/rpm).......................................854/1400
变速箱............................................DANA TE-17000
档位（前/后）...............................................3/3
驱动桥..............................................KESSLER D81
吊具.......................................................ELME
燃油箱容量(L)...............................................400
液压油箱容量(L).............................................430
外形尺寸
全长(mm)...................................................6840
全宽(mm)...................................................4135
高度（门架垂直时）(mm)....................................11720
驾驶室高度(mm).............................................3950
全高（门架起升时）(mm)....................................22015
速度（满载/空载）
最大行驶速度(满载)(Km/h).....................................30
最大起升速度(满载/空载)(mm/s)...........................600/700
最大下降速度（满载）(mm/s)..................................600
