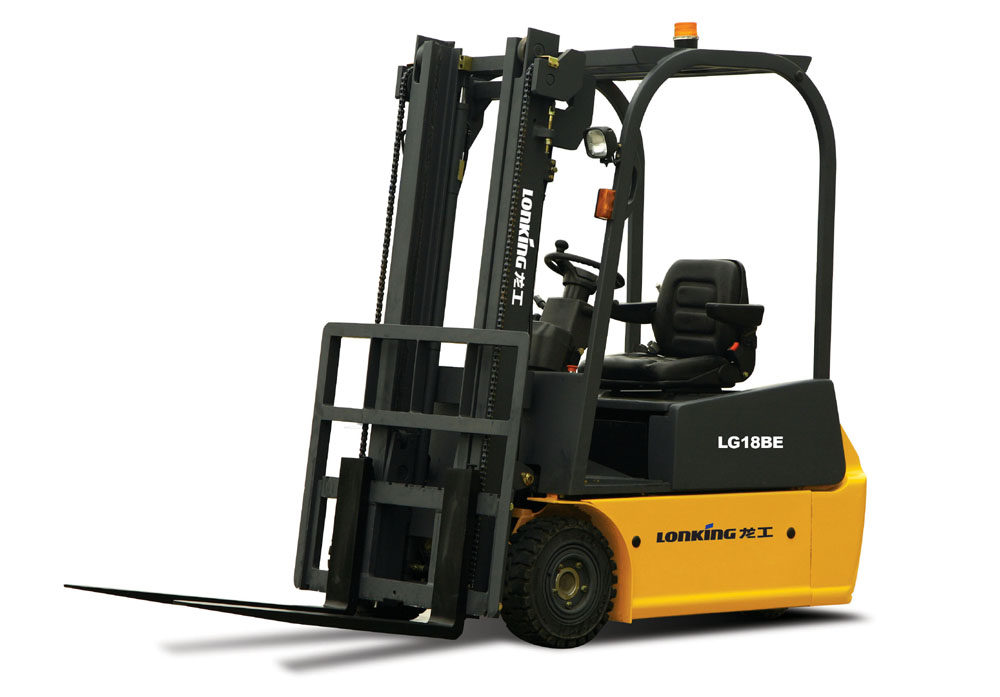

LG15BE/LG18BE蓄电池平衡重式叉车参数
额定载荷(kg)LG15BE/LG18BE..................................1500/1800
载荷中心距(mm)...................................................500
最大起升高度(mm)................................................3000
自由起升高度(mm).................................................145
货叉尺寸(mm)............................................920×100×35
门架倾角(deg)....................................................6/6
最小转弯半径(mm)................................................1540
前悬距(mm).......................................................430
爬坡能力（满载/空载）(%).......................................15/20
自重(kg)LG15BE/LG18BE......................................3400/3500
轮距(前轮/后轮)(mm)LG15BE/LG18BE.............................902/170
最小离地间隙(mm)..................................................90
轴距(mm)........................................................1360
工作压力(Mpa).....................................................16

外形尺寸
总长(含货叉)(mm)................................................2915
总宽(mm)........................................................1060
门架不起升高度(mm)..............................................2090
安全架高度(mm)..................................................2060

速度（满载/空载）
行走速度(Km/h)................................................5/16.2
起升速度(mm/s)...............................................320/390

电机
行走(kw)......................................................6.5×2
起升(kw)..........................................................15
蓄电池(v/Ah)LG15BD/LG18BD.....................................48/550
工作压力(Mpa).....................................................16
