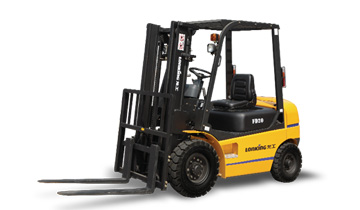

FD20/FD20T/FD25/FD25T 内燃平衡重式叉车参数

动力形式................................................................柴油

额定载重(kg)FD20、FD20T/FD25、FD25T ...............................2000/2500

载荷中心距(mm)...........................................................500

最大起升高度(mm)........................................................3000

自由起升高度(mm).........................................................140

货叉尺寸(mm)......................................970×122×40/1070×125×40

门架倾角(deg)...........................................................6/12

最小转弯半径(mm)FD20、FD20T/FD25、FD25T ...........................2170/2240

最小直角通道宽度(mm)FD20、FD20T/FD25、FD25T .......................1970/2330

最大行驶速度（满载/空载）(km/h)........................................22/22

最大起升速度（满载/空载）(mm/sFD20、FD20T/FD25、FD25T .......430/460,410/440

最大爬坡度（%）...........................................................20

前悬距(mm)...............................................................460后悬距(mm)...........................................................430/500

自重(kg)FD20、FD20T/FD25、FD25T ...................................3550/3950

轮距（前轮/后轮）(mm)................................................960/970

轴距(mm)................................................................1600

总长（含货叉）(mm)FD20、FD20T/FD25、FD25T .........................3460/3630

总宽(mm)................................................................1150

门架不起升高度(mm)......................................................2015安全架高度(mm)..........................................................2110

门架(mm).................................................................123

车架(mm).................................................................140
