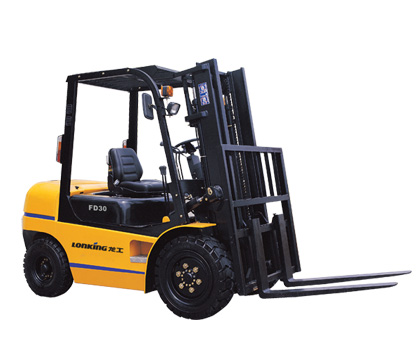

FD30/FD30T/FD35/FD35T 内燃平衡重式叉车参数

动力形式................................................................柴油

额定载重(kg)FD30、FD30T/FD35、FD35T ...............................3000/3500

载荷中心距(mm)...........................................................500

最大起升高度(mm)........................................................3000

自由起升高度(mm).........................................................188

货叉尺寸(mm).....................................1070×125×45/1070×150×50

门架倾角(deg)...........................................................6/12

最小转弯半径(mm)FD30、FD30T/FD35、FD35T............................2460/2520

最小直角通道宽度(mm)FD30、FD30T/FD35、FD35T........................2120/2180

最大行驶速度（满载/空载）(km/h)........................................20/20最大起升速度（满载/空载）(mm/s)FD30、FD30T/FD35、FD35T.......400/420,380/400

最大爬坡度（%）...........................................................20

前悬距(mm)...............................................................483

后悬距(mm)...........................................................522/580

自重(kg)FD30、FD30T/FD35、FD35T....................................4300/4700

轮距（前轮/后轮）(mm)...............................................1000/970

轴距(mm)................................................................1700

总长（含货叉）(mm)FD30、FD30T/FD35、FD35T..........................3775/3843

总宽(mm)................................................................1238

门架不起升高度(mm)......................................................2177

安全架高度(mm)FD30、FD30T/FD35、FD35T..............................2100/2130

门架(mm).................................................................132

车架(mm).................................................................165
