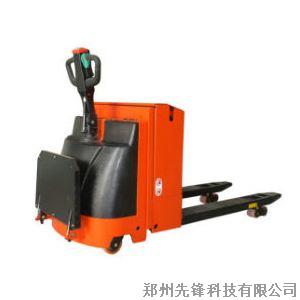

河南全电动托盘搬运车ERE1.5-2.5吨
![]()
我们这款车质量包括外观都是比较欧式化的。这款车的出口量很大。
主要特点配置：1、电控采用美国柯蒂斯CURTIS电控，2、德国进口瑞玛REMA控制手柄，3、进口全套液压密封件，4、关键接插件及关键轴承，5、外资品牌泵站。6、带有可折式踏板。
全电动踏板式托盘搬运车ERE1.5-2.5吨技术参数：
| 电动托盘车 FULL ELECTRIC PALLET TRUCK |
型号 Model |
| 序号Item |
参数 |
Specification |
单位 Unit |
ERE15 |
ERE20 |
ERE22 |
ERE25 |
| 1 |
概述 General |
额定载荷 |
Rated capacity |
Kg |
1500 |
2000 |
2200 |
2500 |
| 2 |
载荷中心 |
Load center |
mm |
600 |
600 |
600 |
600 |
| 3 |
操作类型 |
Drive type |
|
站式 Standed |
| 4 |
行车制动 |
Motor brake |
|
Electromagnetic |
| 5 |
前悬距 |
Load distance (centerline of front axle to front face of forks) |
mm |
963/1054 |
963/1033 |
963/1033 |
957 |
| 6 |
蓄电池重量 |
Battery weight |
Kg |
48 |
185 |
185 |
280 |
| 7 |
自重（含蓄电池） |
Self weight (with battery) |
Kg |
286 |
520 |
515 |
970 |
| 8 |
满载桥负荷 驱动侧/承重侧 |
Full Load per Axle - Driving side / bearing side |
Kg |
675/1115 |
1040/1480 |
1085/1630 |
162/1850 |
| 9 |
空载桥负荷 驱动侧/承重侧 |
Empty Load per Axle - Driving side / bearing side |
Kg |
230/60 |
405/115 |
400/115 |
780/200 |
| 10 |
尺寸 Dimensions |
提升高度 |
Lifting Height (standard) |
mm |
120 |
120 |
120 |
130 |
| 11 |
货叉最低离地高度 |
Fork min. ground clearance |
mm |
85 |
85 |
85 |
85 |
| 12 |
标准货叉外宽 |
Adjust width of fork (standard) |
mm |
520/650 |
540/685 |
540/685 |
560 |
| 13 |
标准货叉尺寸 |
Fork size |
mm |
47/160/1220 |
60/160/1150 |
60/160/1150 |
60/160/1150 |
| 14 |
轮轴中心离地间隙 |
Minimum ground clearance |
mm |
24 |
25 |
25 |
25 |
| 15 |
整车长度 |
Overall length |
mm |
1660 |
1815/1885 |
1815/1885 |
2025 |
| 16 |
整车宽度 |
Overall width |
mm |
700 |
726 |
726 |
796 |
| 17 |
整车高度（含手柄） |
Overall height (including handle ) |
mm |
1235 |
1323 |
1323 |
1290 |
| 18 |
车体高度 |
Bodywork height |
mm |
677 |
745 |
745 |
1196 |
| 19 |
轮距 前/后 |
Wheel tread (front/rear) |
mm |
490/490 |
540/380 |
540/380 |
441/380 |
| 20 |
轮轴轴距 |
Supporting wheel tread |
mm |
1310 |
1368 |
1368 |
1515 |
| 21 |
最小转弯半径 |
Minimum turning radius |
mm |
1976 |
1640 |
1640/1710 |
1865 |
| 22 |
直角通道宽度（1200托盘） |
Stacking right angle aisle width (1200mm pallet) |
mm |
1976 |
2105 |
2105 |
2255 |
| 23 |
性能数据 Performance |
最大行驶速度 |
满载 |
Max. driving speed (full) |
Km/h |
5 |
5 |
5.8 |
8.7 |
| 24 |
空载 |
Max. driving speed (empty) |
Km/h |
5.2 |
5.2 |
6 |
9 |
| 25 |
最大起升速度 |
满载 |
Max. lifting speed (full) |
mm/s |
27 |
27 |
19 |
33.7 |
| 26 |
空载 |
Max. lifting speed (empty) |
mm/s |
35 |
35 |
38 |
45 |
| 27 |
最大下降速度 |
满载 |
Max. declining speed (full) |
mm/s |
42 |
42 |
30 |
35.7 |
| 28 |
空载 |
Max. declining speed (empty) |
mm/s |
27 |
27 |
27 |
18.7 |
| 29 |
爬坡度 满载/空载 |
Gradeability full/empty |
% |
5/8 |
10/16 |
9/15 |
6.9/14 |
| 30 |
转向角度 |
Steering angle |
° |
205 |
180 |
180 |
180 |
| 31 |
耳边噪音 |
Sound level at the driver's ear |
dB(A) |
＜70 |
＜70 |
＜70 |
＜70 |
| 32 |
轮子底盘 Wheel |
轮子材质 |
Wheels material |
|
聚氨酯轮(Polyurethane) |
| 33 |
轮子数量（前/后） |
Wheel number (front/rear) |
|
4/3 |
| 34 |
驱动轮尺寸 |
Drive wheel (mm) |
mm |
φ252X89 |
φ230X75 |
φ230X75 |
φ254X82 |
| 35 |
承重轮尺寸 |
Load wheel (mm) |
mm |
φ74X70 |
φ74X70 |
φ84X70 |
φ84X70 |
| 36 |
平衡轮尺寸 |
Balance wheel (mm) |
mm |
φ100X40 |
φ100X40 |
φ100X40 |
φ149X55 |
| 37 |
动力控制系统 Power and Control |
电机 Motor |
行走 |
Travel motor |
KW |
0.8 |
1.5 |
1.5 |
2.2 |
| 38 |
起升 |
Lift motor |
KW |
0.6 |
0.8 |
0.8 |
2.2 |
| 39 |
蓄电池 Battery |
电压 |
Voltage |
V |
2X12 |
24 |
24 |
24 |
| 40 |
容量 |
Battery capacity |
Ah |
80 |
210 |
210 |
360 |
| 41 |
动力 |
Power |
|
Electric | | 公司以“客户至上”为原则，竭诚欢迎广大客户来洽谈合作！ |
