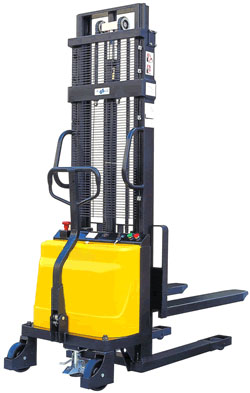

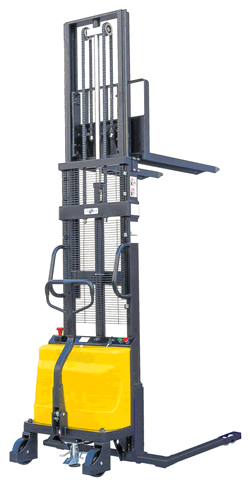

| 型号Model No | BDA | |||||
特性 Characteristic | 驾驶方式(手动，步行，战驾，拣选) | Driving style | 手动 | |||
额定载荷 Load capacity | Q(kg) | 1000 | 1500 | 2000 | ||
载荷中心距 Load center | C(mm) | 500 | ||||
前悬距 Front overhang | X(mm) | 600 | ||||
轮距 Wheel base | Y(mm) | 1160 | 1260 | 1260 | ||
自重(带电瓶) Net weight | kg | 380 | 450 | 480 | ||
重量 Weight | 轴负载，满载时前/后轴 Front/rear axle | kg | 550/910 | 671/1349 | ||
轴负载，空载时前/后轴 Front / rear axle | kg | 335/105 | 395/125 | |||
轮子 Wheel | 尼龙轮 | |||||
轮子尺寸，前轮 Tyre size,front | mm | φ180×50 | ||||
轮子底盘 Wheel chassis | 轮子尺寸，后轮 Tyre size ,rear | mm | φ80×93 | |||
轮，前后数量（x = 驱动轮） | mm | 2/2 | ||||
前轮轮距 Front wheel base | b10(mm) | 700 | ||||
后轮轮距 Rear wheel base | b11(mm) | 510 | ||||
| 尺寸 Size | 门架缩回时高度 Lowered mast height | h1(mm) | 2085/1885/2085 | |||
升起高度 Lifting height | h3(mm) | 1600/2500/3000 | ||||
作业时门架最大高度 Overall height | h4(mm) | 2085/2910/3410 | ||||
货叉最低高度 Fork lowered height | h13(mm) | 90 | ||||
总体长度 Overall lengh | l1(mm) | 1735 | ||||
车体宽度 Overall width | b1(mm) | 800 | 980 | 800 | ||
货叉尺寸(固定/移动板式/移动锻打) Fork size | S/e/l(mm) | 60 X 170 X 1070(1150)/60 X 142 X 900(1070)/30 X120 X900(1070) | ||||
货叉外宽(固定/移动板式/移动锻打) Fork width | b5(mm) | 680/295-960/240-930 | ||||
轴距中心离地间隙 Ground clearance | m2(mm) | 30 | ||||
通道宽度，托盘1000x1200(跨货叉放置) Aisel width | Ast(mm) | 2288 | 2368 | |||
通道宽度，托盘800x1200(沿货叉放置) Aisel width | Ast(mm) | 2267 | 2347 | |||
转弯半径 Min turning radius | Wa(mm) | 1350 | ||||
性能 Performance | 提升速度，满载/空载 Lifting speed with/without load | m/s | 0.08/0.1 | |||
下降速度，满载/空载 Falling speed with/without load | m/s | 0.15/0.12 | ||||
行车制动 Brake | 机械制动 | |||||
电动机 Motor | 提升电机功率 Lifting motor power | kw | 1.5 | 1.6 | 1.6 | |
蓄电池电压/额定容量 Battery voltage / rated capacity | V/Ah | 12/120 | 12/135 | 12/150 | ||
蓄电池重量 Battery weight | kg | 35 | 38 | 45 | ||
蓄电池尺寸（长X宽X高） Battery Size | mm | 362x172x262 | 502x180x231 | 505x220x230 | ||
驾驶员耳边噪音等级符合 noise levels | dB(A) | <70 | ||||
