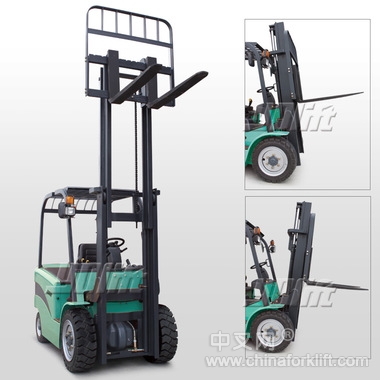

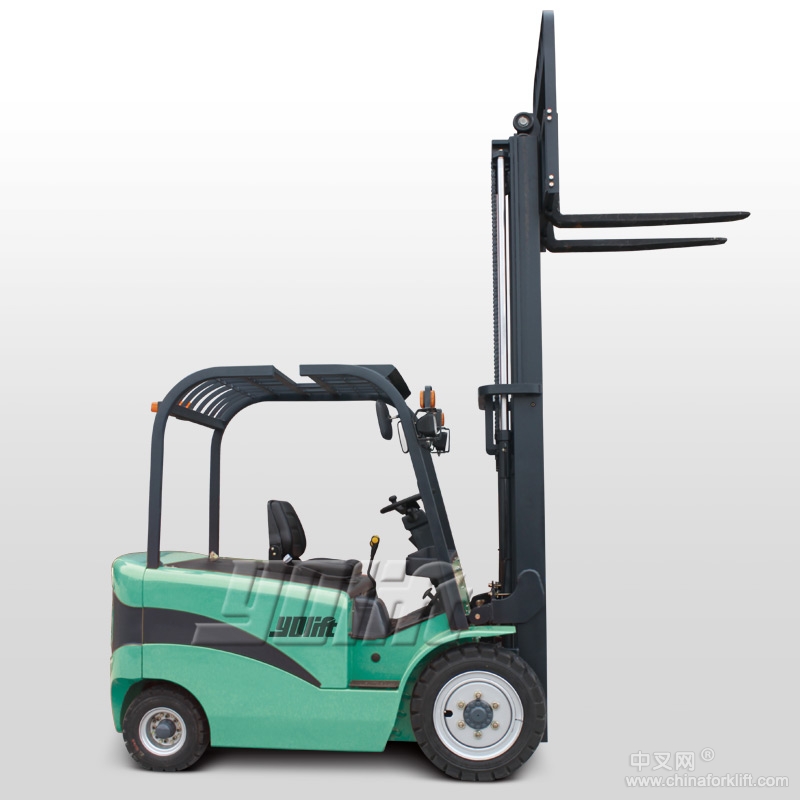

| 货 号 | YL84110 | YL84111 | YL84112 | YL84113 | YL84114 | YL84115 | YL84116 | ||
| 动力形式 | CURTIS AC+DC | ||||||||
| 额定起重量 | kg | 1000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | |
| 载荷中心距 | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| 起升高度(h3) | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 自由起升高度(h2) | mm | 135 | 135 | 135 | 160 | 160 | 165 | 170 | |
| 货叉规格(L×W×T) | mm | 920× 100×35 | 920× 100×35 | 920× 100×35 | 1070× 122×40 | 1070× 122×40 | 1070× 125×45 | 1070× 130×50 | |
| 货叉调节范围(最小/最大) | mm | 200/890 | 200/890 | 200/890 | 250/1040 | 250/1040 | 250/1100 | 250/1100 | |
| 门架倾角(前/后) | Deg | 6°/12° | |||||||
| 前悬距(X) | mm | 400 | 400 | 400 | 465 | 465 | 485 | 485 | |
| 最小离地间隙(m2) | mm | 110 | 110 | 110 | 125 | 125 | 130 | 130 | |
| 整车长度（不带货叉） | mm | 2140 | 2140 | 2185 | 2375 | 2400 | 2615 | 2670 | |
| 整车宽度 | mm | 1080 | 1080 | 1080 | 1150 | 1150 | 1230 | 1230 | |
| 门架不起升高度(h1) | mm | 2015 | 2015 | 2015 | 2010 | 2010 | 2075 | 2150 | |
| 门架起升高度(带挡货架)(h4) | mm | 3984 | 3984 | 3984 | 3990 | 3990 | 4117 | 4112 | |
| 护顶架高度(h6) | mm | 2115 | 2115 | 2115 | 2110 | 2110 | 2150 | 2150 | |
| 最小转弯半径 | mm | 1956 | 1956 | 1993 | 2080 | 2100 | 2280 | 2335 | |
| 直角堆垛通道宽度 (1000×1200横向)(AST) | mm | 3556 | 3556 | 3593 | 3740 | 3760 | 4035 | 4090 | |
| 直角堆垛通道宽度 (800×1200纵向)(AST) | mm | 3756 | 3756 | 3793 | 3940 | 3960 | 4165 | 4220 | |
| 运行速度(满载/空载) | km/h | 13/13 | 13/13 | 13/13 | 13/13 | 13/13 | 12/13 | 12/13 | |
| 起升速度(满载/空载) | mm/s | 280/460 | 280/460 | 280/460 | 260/440 | 260/440 | 220/384 | 220/384 | |
| 最大爬坡度(满载/空载) | % | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | |
| 轮胎(前×2) | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.0-12-12PR | 7.0-12-12PR | 28×9-15-12PR | 28×9-15-12PR | ||
| 轮胎(后×2) | 5.00-8-8PR | 5.00-8-8PR | 5.00-8-8PR | 18×7-8-14PR | 18×7-8-14PR | 18×9-8-14PR | 18×9-8-14PR | ||
| 轮距(前)(b10) | mm | 890 | 890 | 890 | 960 | 960 | 1000 | 1000 | |
| 轮距(后)(b11) | mm | 920 | 920 | 920 | 950 | 950 | 980 | 980 | |
| 轴距(Y) | mm | 1380 | 1380 | 1380 | 1500 | 1500 | 1680 | 1680 | |
| 自重(包括电瓶) | kg | 2790 | 2950 | 3230 | 4130 | 4300 | 5060 | 5380 | |
| 蓄电池(标准) | V/Ah | 48/450 | 48/450 | 48/450 | 48/600 | 48/600 | 80/500 | 80/500 | |
| 电机 | 行走 | KW | 6.0 | 6.0 | 6.0 | 8.5 | 8.5 | 10 | 10 |
| 起升 | KW | 8.0 | 8.0 | 8.0 | 12 | 12 | 12 | 12 | |
| 控制器 | 型号 | AC+DC | |||||||
| 制造商 | CURTIS | ||||||||
| 工作压力 | Mpa | 14.5 | 14.5 | 14.5 | 17.5 | 17.5 | 17.5 | 17.5 | |
