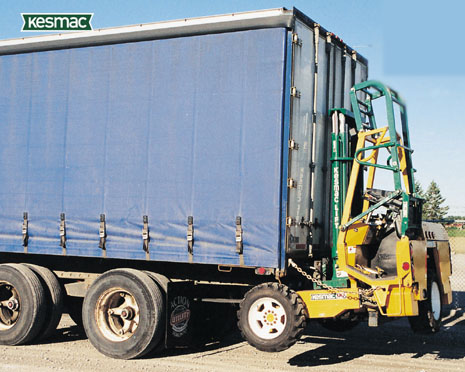

加拿大克斯马克叉车(KESMAC)5000磅车载式叉车

zxczxczxczxc	5000
zxczxczxczxc	RETRACTABLE	FIXED
Load Capacity At 24” Load Center / 610 mm	5000 lbs / 2268 kg	Same
Lift Height**	120” / 3048 mm	Same
Side Shift	6” / 152 mm	Same
Tilt	8° forward 8° backward	Same
Weight †	5160 lbs / 2341 kg	4850 lbs / 2200 kg
Width*	96” / 2438 mm	Same
Length* Legs Extended (F.O.P.S. Folded) Legs Retracted (Less Forks)	96” / 2438 mm 45” / 1143 mm	Samen/a
Height* ** Mast Lowered Mast Raised	95” / 2413 mm 155” / 3937 mm	Same Same
Truck Overhang* (Less Forks)	45” / 1143 mm	Same
Length Under Truck Platform* (Less Forks)	0”	31” / 787 mm
Shortest Turning Radius and Wheel Base, Legs Extended	57” / 1447 mm	5, 6, 7, & 9
Tires	10-16.5 NHS 8 Ply Std. 33 x 12.50-15 NHS 8 Ply Opt	Same
Engine	Kubota V 1505-T Turbo Diesel	Same
Output	46.5 HP @ 3000 RPM Gross Intermittent	Same
Cylinders	4	Same
Max Travel Speed	8 mph / 13 kph	Same
Drive	3 Wheel Hydrostatic	Same
Fork Carriage	I.T.A. Class II	Same
Forks (Standard)	4” x 1 1/2” x 46” (102 mm x 38.1 mm x 1168 mm)	Same
Optional Forks	Available	Available
Adjustable Forks	Standard 16” (406 mm) mounting	Same
Posi-Traction, Manually Activated Hydraulic Diff Lock	Same	Same
Theft / Vandalism Deterrence, Operator’s Compartment, Folds and locks in inoperative position	Same	Same
Manual or Power Operated Hook Up Kits	Available	Available
Back Rest, Backup Alarm and Amber Strobe Light	Available	Available
Counter Balance Weight Kit	n/a	Available
