当您需要额外的仓库空间时,您有两个选择 - 扩展您现有的设施或移动场所。BESTLIFT窄道叉车给您提供了第三种选择。 通过优化您的货架布局,并将通道宽度降至1.6m,您可以大大提高现有设施中的存储容量。 BESTLIFT也是设计新设施或仓库的理想选择,充分利用空间并最大限度地提高存储容量。
研发原装进口 国内组装

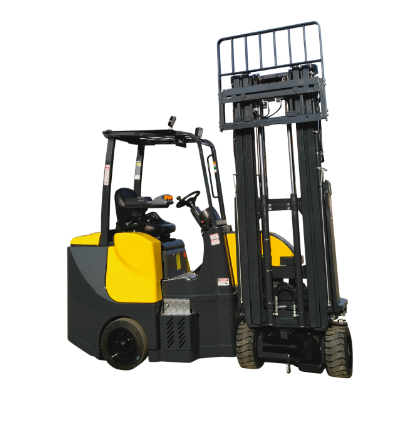

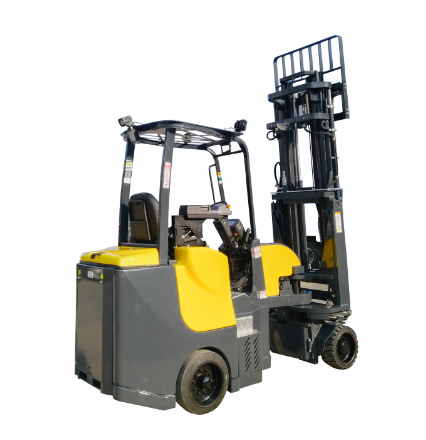

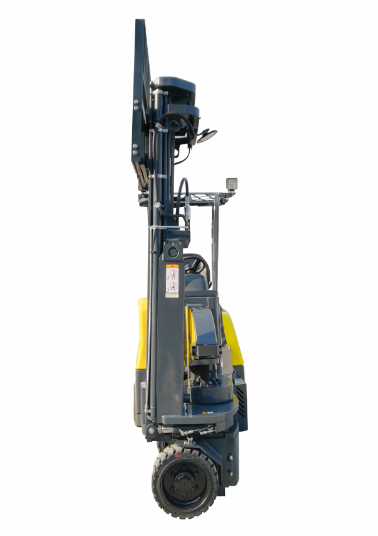

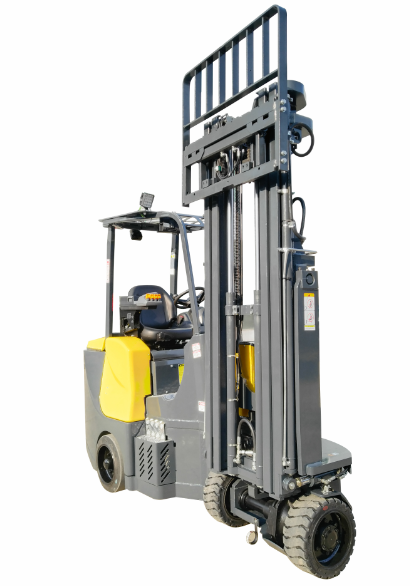

产品外观 : 铰接式窄巷道叉车
功能 : 三向操作 左右205°旋转、
特点 :节约仓储空间 提高仓储效率
交易属性 :一台
型号 :NA15
Model
|
NA15
|
Capacity
|
kg
|
1500
|
Free lift
|
mm
|
1965 (Triplex 6m full free mast)
|
Mast closed height
|
mm
|
2865 (Triplex 6m full free mast)
|
Mast
extended height
|
mm
|
7261 (Triplex 6m full free mast)
|
Mast range
|
mm
|
4300-7050
|
Overall length
|
mm
|
2780
|
Ground clearance
|
mm
|
50
|
Overhead guard height
|
mm
|
2270
|
Front chassis width
|
mm
|
980
|
Rear chassis width
|
mm
|
1050
|
Load center
|
mm
|
600
|
Wheel base
|
mm
|
1745
|
Seat height
|
mm
|
1220
|
Mast tilt (Back/Forward)
|
。
|
3/1
|
Mast rotate angle (left to
right)
|
。
|
205
|
Ground speed
|
Km/s
|
16
|
Lift speed (load/unload)
|
m/s
|
0.4/0.5
|
Front tire size
|
mm
|
412*174
|
Rear tire size
|
mm
|
457*150
|
Grade ability (load/unload)
|
%
|
12/15
|
Battery voltage/capacity
|
V/Ah
|
80V/400Ah
|
Weight of truck with battery
|
kg
|
6400
|
Weight of truck without battery
|
kg
|
5150
|
Traction motor (AC)
|
kw
|
19.5
|
Lifting motor (A/C)
|
kw
|
15
|
90 degree entrance width
|
mm
|
1900
|
